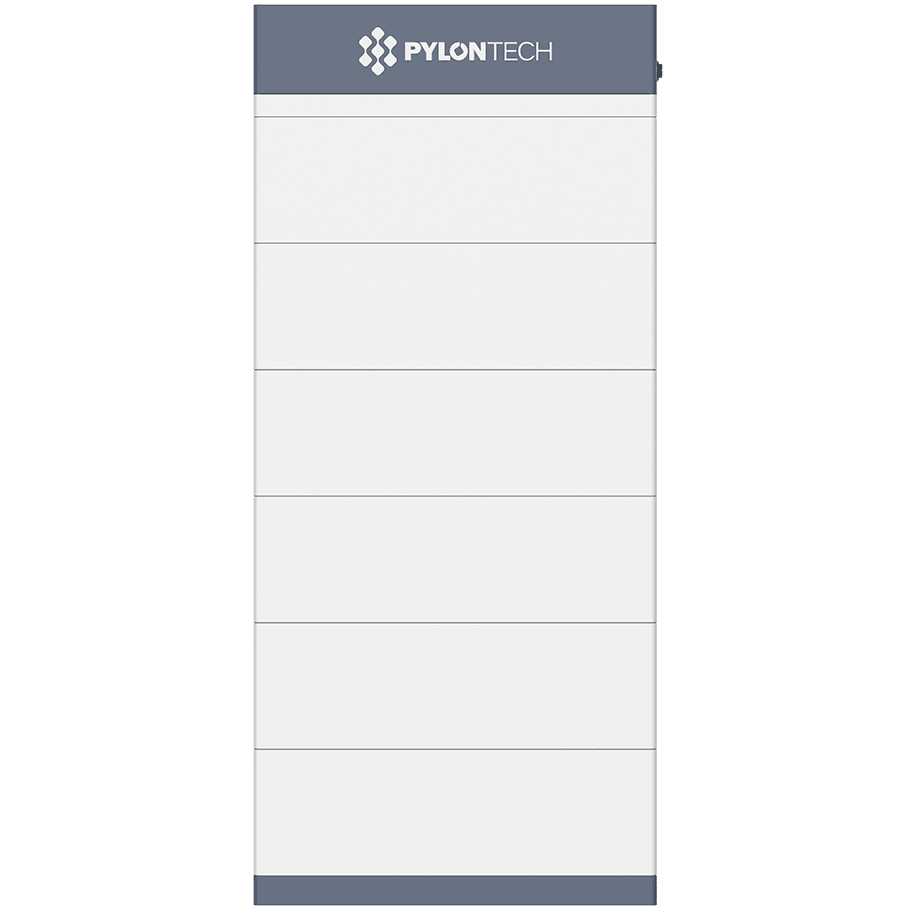

Home battery · Pylontech · CEC approved August 2024
A 4.97 kWh home battery.
Read from the figures on this page — no review written yet
The numbers that matter for a home. The full datasheet is below.
Usable capacity
How much energy it stores for you to use
Continuous power
How much it can run at once — the essentials, not the whole house
Round-trip efficiency
How much of the energy you store comes back out
Depth of discharge
You can use the whole battery, not just part of it
Warranty
60% of capacity guaranteed at the end of it
Battery chemistry
Lithium iron phosphate — the long-cycle-life type
Every figure on file for the Pylontech Force H3, by section.
| Specification | Value |
|---|---|
| Cell & chemistry | |
| Chemistry | LFP |
| Cell type | N/A |
| Capacity & power | |
| Nominal capacity | 4.97 kWh |
| Usable capacity | 4.97 kWh |
| Continuous power | 4.97 kW |
| Peak power | 5.55 kW |
| Depth of discharge | 100% |
| Round-trip efficiency | 100% |
| Nominal voltage | 102.4 V |
| Lifespan & degradation | |
| Cycle life | 8000 cycles |
| Capacity retained at year 10 | 60% |
| Warranted throughput | 3 MWh |
| Modularity & stacking | |
| Modular / stackable | No |
| Maximum stack | 34.76 kWh |
| Backup & grid services | |
| Backup capable | No |
| VPP ready | No |
| Physical | |
| Dimensions (H×W×D) | 360 × 540 × 350 mm |
| Weight | 53 kg |
| IP rating | IP55 |
| Operating environment | |
| Operating temperature | -10°C to 55°C |
Parsed from the manufacturer datasheet, install manual, and warranty document. Confirm against the linked PDFs before relying on a value for a quote or installation.
The warranty covers defects in materials and workmanship for 10 years. It excludes damages from improper installation or environmental factors. Claims must be submitted through the authorized reseller within 48 hours of discovery.
10
years
3
MWh
55°
celsius
Level 0
No Backup
Warranty handled through distributor network.
Rated to 55°C, which covers Perth's hottest days.
CSIP-AUS compliant
Inverter must be CSIP-AUS compliant under the current WA framework.
Synergy SSL approved inverter
Pairs with SUNGROW POWER SUPPLY CO LTD RT.
VPP activation ready
Ready for Synergy VPP participation.
WA Battery Scheme rebate
Up to $1,300 for Synergy customers (10kWh max eligible).
Synergy Battery Rewards
Requires a CSIP-AUS compliant system and reliable internet.
Interest-free loan
Qualifies for up to $10,000 interest-free.
Under current WA rules, new rebate applications require VPP enrolment and CSIP-AUS compliance. How the scheme works · Estimate VPP earnings
9 years in the Australian market
$4,200
Typical installed price, before rebates
The WA rebate is $0 here: it's under the scheme's 5 kWh minimum size. Federal STCs are $0 here: this battery is below the size where the program issues certificates. Estimates only; your quote will vary.
Usable capacity, for one battery system
This battery is below the smaller-home band. The WA rebate caps at 10 kWh, but that is a rebate limit, not a sizing guide.
The Pylontech Force H3-102.4/102.4-US against the closest-sized batteries from other brands.
| Specification | Pylontech Force H3-102.4/102.4-USPylontech | ZRGP ZR-PBX1ZRGP | Felicity ESS LUX-X-48100LCG01-USFelicity ESS |
|---|---|---|---|
| Usable capacity? | 4.97 kWh | 4.97 kWh | 4.98 kWhbest value |
| Continuous power? | 4.97 kW | Not verified | Not verified |
| Peak power? | 5.55 kW | Not verified | Not verified |
| Round-trip efficiency? | 100%best value | 92% | 92% |
| Warranty | 10 years | Not verified | Not verified |
| Chemistry | LFP | LFP | LFP |
Specs from the CEC register and datasheet enrichment. Indicative — confirm exact figures with your installer.
CEC-approved inverters compatible with Pylontech batteries.
Sungrow
SH10RT (AS4777-2 2020)
Sungrow
SH5.0RT (AS4777-2 2020)
Sofar
HYD 10KTL-3PH-A (AS4777-2 2020)
Sofar
HYD 10KTL-3PH (AS4777-2 2020)
Sofar
HYD 15KTL-3PH (AS4777-2 2020)
Sofar
HYD 20KTL-3PH (AS4777-2 2020)
Other CEC-approved products from Pylontech available in Australia.
FH3X-10K-HY-3P-10 (AS4777-2 2020)
10 kW · 3φ
FH3X-10K-HY-3P-15 (AS4777-2 2020)
10 kW · 3φ
FH3X-10K-HY-3P-20 (AS4777-2 2020)
10 kW · 3φ
FH3X-10K-HY-3P-25 (AS4777-2 2020)
10 kW · 3φ
FH3X-10K-HY-3P-30 (AS4777-2 2020)
10 kW · 3φ
FH3X-10K-HY-3P-35 (AS4777-2 2020)
10 kW · 3φ
