Back to all batteries

CEC approved: June 2025Report outdated info

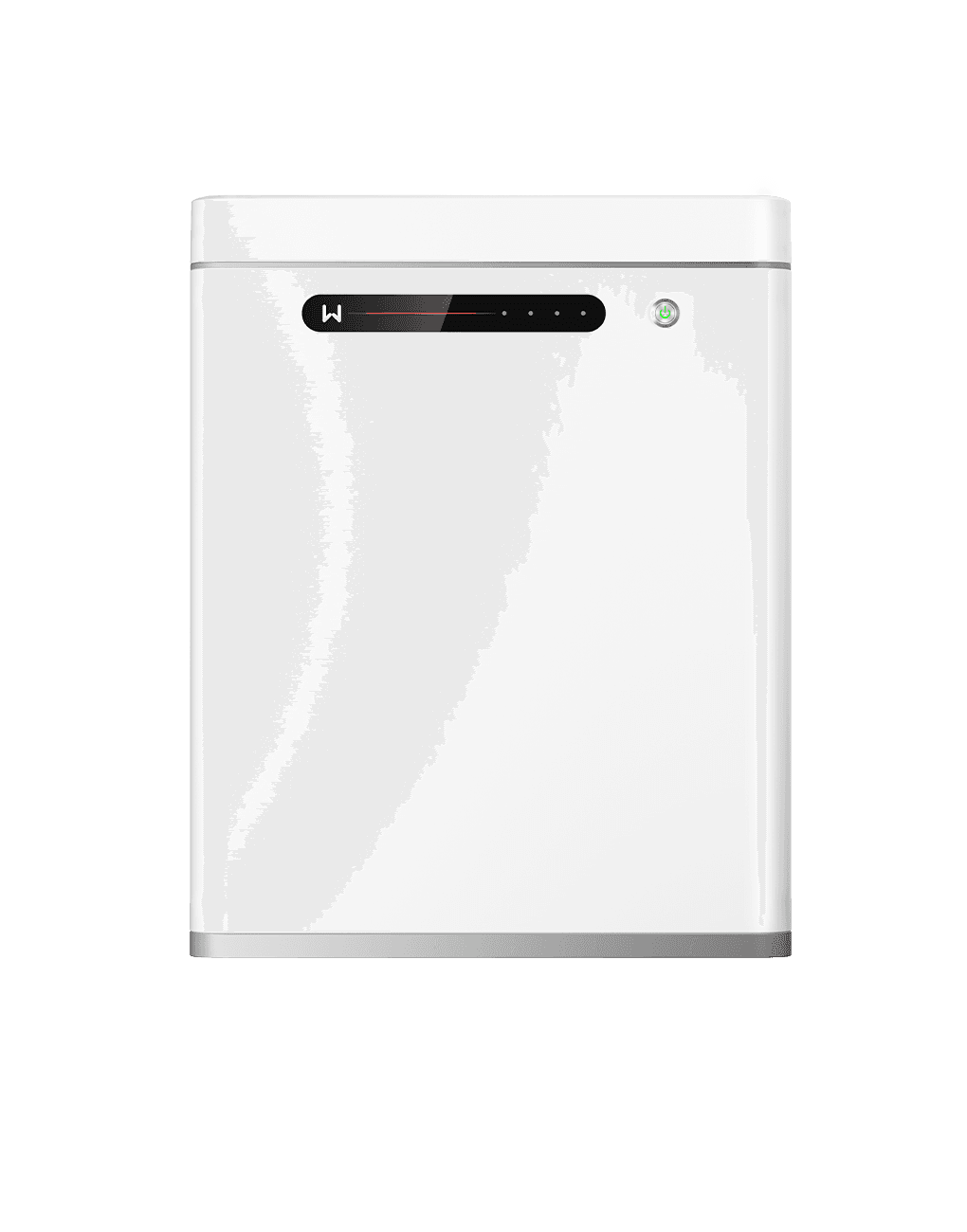

GOODWE LX U5.0-30

Name: GOODWE LX U5.0-30
Brand: GOODWE

Lynx U G3 Series series

CEC Approved

View datasheet (PDF)

Part of Lynx U G3 Series — see all configurations

Usable capacity: 5 kWh
Round-trip efficiency: 92%
Warranty: 10 yr
Chemistry: LFP

Full specifications

Parsed from the manufacturer datasheet, install manual, and warranty document. Confirm against the linked PDFs before relying on a value for a quote or installation.

Cell & chemistry

Chemistry: LFP

Capacity & power

Nominal capacity: 150 kWh
Usable capacity: 5 kWh

Physical

IP rating: IP65

Resources

Datasheet Warranty terms Installation guide

Warranty and support

Warranty terms and Australian support structure.

The warranty covers defects in materials and workmanship for up to 10 years. Exclusions include improper installation and environmental damage; claims must be made within two weeks of noticing a fault.

Duration

years

Throughput

∞

MWh

Max Temp

45°

celsius

Max Backup

Level 0

No Backup

Australian support structure

Australian Office12 years in AU market

GoodWe Australia

Direct manufacturer warranty. Australian consumer law applies.

Perth climate suitability

Suitable with precautions

Rated to 45°C. Plan for a shaded or garage install through Perth summers.

Key warranty terms

•Depth of Discharge: 90% usable capacity
•Round-trip Efficiency: 92% rated
•Annual Degradation: ~2.5% per year expected
•Installation: Must be installed by SAA-accredited installer
•Operating Conditions: -10°C to 45°C

✓ TransferableFull replacement

Warranty Document Datasheet Compare Warranties

WA Battery Scheme eligibility

Check eligibility

Synergy SSL inverter pairing, VPP participation and state-rebate qualification for this battery. Rebate and STC amounts are shown in the pricing panel.

CSIP-AUS compliant
Inverter must be CSIP-AUS compliant under the current WA framework.
Synergy SSL approved inverter
Needs pairing with a Synergy SSL approved inverter.
VPP activation ready
VPP activation requires a Synergy SSL approved inverter.
WA Battery Scheme rebate
Requires Battery Rewards participation under the current WA framework.
Synergy Battery Rewards
Requires a CSIP-AUS compliant system and reliable internet.
Interest-free loan
Not eligible for interest-free financing.

Under current WA rules, new rebate applications require VPP enrolment and CSIP-AUS compliance. How the scheme works · Estimate VPP earnings

About GOODWE

View Full Profile →

Years in AU Market12+ years

Local SupportNot verified

CEC-Listed Products30 models

12yr AU

CEC-approved products since 2014

12 years in the Australian market

Fault & error codes — GOODWE Lynx U G3 Series

Extracted from the installation manual

14 documented

Showing 14 of 14. The official install manual is the authoritative source — always confirm before acting.

Circuit-Breaker FailurecriticalCall your installer
Manual (PDF)
Circuit Breaker Failure
Likely cause
Issue with the circuit breaker in the system.
What to do
Turn on the circuit breaker. If the problem persists, please contact GoodWe.
Inconsistent Software VersioncriticalCall your installer
Manual (PDF)
Inconsistent Software Version
Likely cause
Software versions across the batteries are mismatched.
What to do
Contact GoodWe for help.
Master Control Communication LostcriticalCall your installer
Manual (PDF)
Communication Lost with Master Control
Likely cause
Failure in communication with the master control unit.
What to do
Power off and check communication cable. Restart the battery. If the problem persists, please contact GoodWe.
MOS FailurecriticalCall your installer
Manual (PDF)
MOS Failure
Likely cause
Failure of the MOSFETs in the battery system.
What to do
Contact GoodWe for help.
MOS OvertemperaturecriticalCall your installer
Manual (PDF)
MOS Overtemperature
Likely cause
Temperature of MOSFETs is too high.
What to do
Power off for 2 hours. If the problem persists, please contact GoodWe.
Multi Master Control FailurecriticalCall your installer
Manual (PDF)
Multiple Master Control Failure
Likely cause
Detection of multiple master controllers in the system.
What to do
Restart all batteries in 30 seconds after shutting down.
Slaver Control Communication LostcriticalCall your installer
Manual (PDF)
Communication Lost with Slave Control
Likely cause
Communication failure with the slave controller.
What to do
Power off and check communication cable. Restart the battery. If the problem persists, please contact GoodWe.
SN FailurecriticalCall your installer
Manual (PDF)
Serial Number Failure
Likely cause
Issues related to the serial number detection in the system.
What to do
Contact GoodWe for help.
High Temperaturewarning
Manual (PDF)
High Temperature
Likely cause
Battery temperature exceeds the specified limit.
What to do
Power off immediately and allow to cool down.
Low Temperature Dischargingwarning
Manual (PDF)
Low Temperature Discharging
Likely cause
Attempting to discharge battery at low temperatures.
What to do
Power off and wait for temperature to increase. Restart battery. If the problem persists, please contact GoodWe.
Overcurrent When Chargingwarning
Manual (PDF)
Overcurrent During Charging
Likely cause
Excessive current supplied during charging.
What to do
Restart the battery. If the problem persists, please contact GoodWe.
Temperature Exceptionwarning
Manual (PDF)
Temperature Exception
Likely cause
Battery temperature is outside the allowable range.
What to do
Power off and restart after 2 hours. If the problem persists, please contact GoodWe.
The cell voltage difference is extremely highwarning
Manual (PDF)
High Cell Voltage Difference
Likely cause
Voltage difference between battery cells exceeds acceptable limits.
What to do
Power off and restart after 2 hours. If the problem persists, please contact GoodWe.
Under voltagewarning
Manual (PDF)
Under Voltage Condition
Likely cause
Battery voltage is too low.
What to do
Press the button consecutively for 5 times in 10 seconds for recovery.

Perth pricing

Typical installed price

$4,500

WA State RebateSubject to eligibility

Federal STCs-$1,357

After Rebates~$3,143

Prices are estimates. Final pricing depends on installation requirements. STC value is based on the current certificate price of about $39.9.

The WA Battery Scheme rebate (up to $1,300) requires a Synergy-approved (SSL) inverter and VPP enrolment — not all systems qualify, so it is not included above. Confirm eligibility with your installer.

Explore your options

Insufficient Data for Scoring

3 of 5 critical specs available (need 4)

Part of the GOODWE Lynx U G3 Series

See all configurations in this series →

Compare options

Compare this battery with other models to find the best fit for your needs.

Compare Products

Frequently asked questions

How it compares

The GOODWE LX U5.0-30 against the closest-sized batteries from other brands.

Specification	GOODWE LX U5.0-30GOODWE	Alpha ESS SMILE-M-BAT-5PAlpha ESS	Anker X1-B5-HAnker

Usable capacity?	5 kWh	5 kWh	5 kWh
Continuous power?	Not verified	Not verified	Not verified
Peak power?	Not verified	Not verified	Not verified

Round-trip efficiency?	92%	92%	92%
Warranty	10 years	10 years	10 years
Chemistry	LFP	LFP	LFP

Specs from the CEC register and datasheet enrichment. Indicative — confirm exact figures with your installer.
