Back to all batteries

CEC approved: June 2025Report outdated info

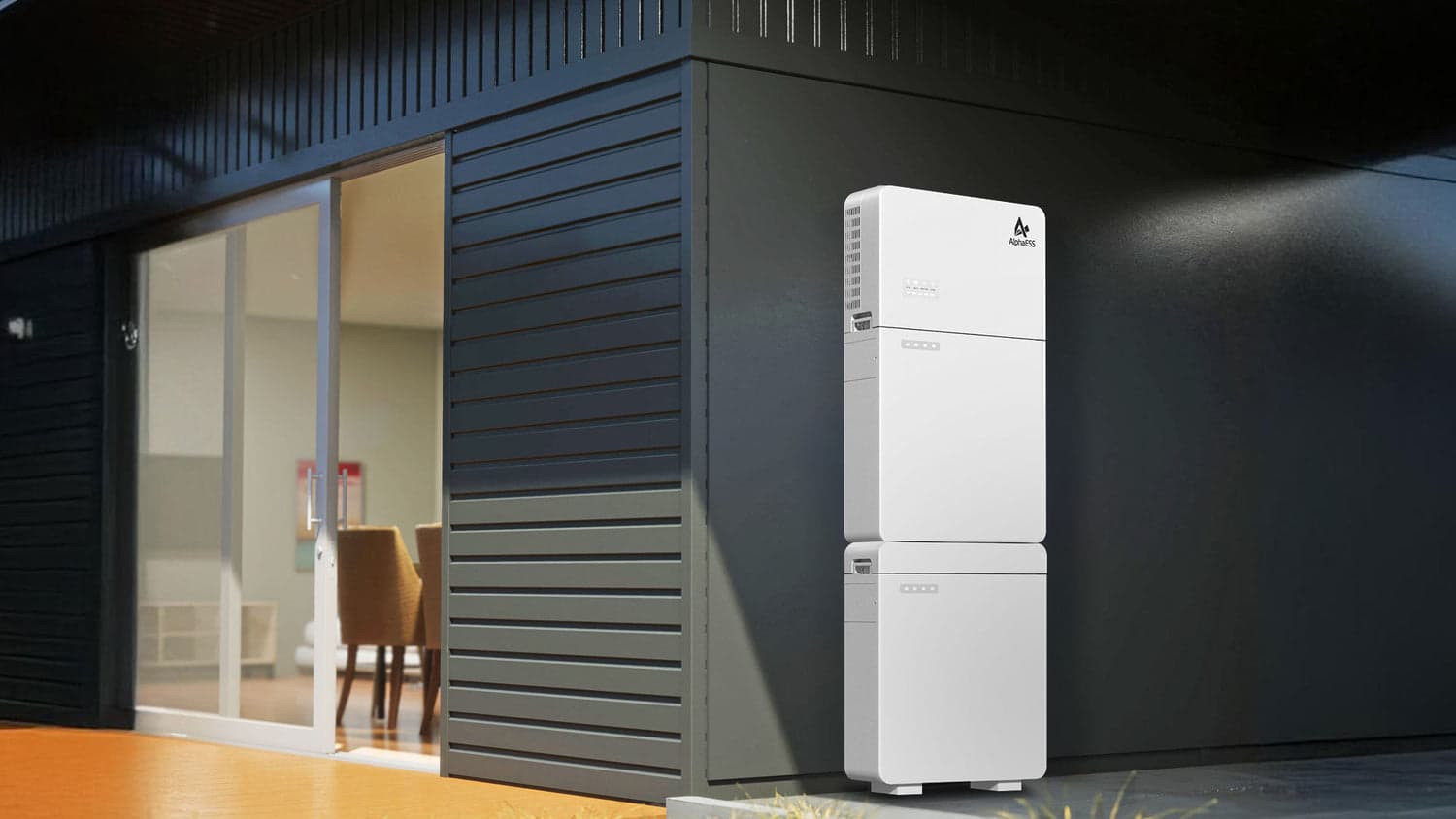

Alpha ESS SMILE-M-BAT-5P

Name: Alpha ESS SMILE-M-BAT-5P
Brand: Alpha ESS

SMILE-M-BAT series

CEC Approved

View datasheet (PDF)

Part of SMILE-M-BAT — see all configurations

Usable capacity: 5 kWh
Round-trip efficiency: 92%
Warranty: 5 yr
Chemistry: LFP

Full specifications

Parsed from the manufacturer datasheet, install manual, and warranty document. Confirm against the linked PDFs before relying on a value for a quote or installation.

Cell & chemistry

Chemistry: LFP

Capacity & power

Nominal capacity: 5 kWh
Usable capacity: 5 kWh

Physical

Dimensions (H×W×D): 210 × 610 × 627 mm
Weight: 30 kg

Operating environment

Operating temperature: -10°C to 50°C

Resources

Datasheet Warranty terms Installation guide

Warranty and support

Warranty terms and Australian support structure.

AlphaESS provides a warranty for their products covering defects in materials and workmanship. Key exclusions include improper installation and environmental factors outside specified limits.

Duration

years

Throughput

∞

MWh

Max Temp

50°

celsius

Max Backup

Level 0

No Backup

Australian support structure

Australian Office9 years in AU market

Alpha ESS Australia

Chinese manufacturer with Australian subsidiary.

Perth climate suitability

Suited to Perth climate

Rated to 50°C, which covers Perth's hottest days.

Key warranty terms

•Depth of Discharge: 90% usable capacity
•Round-trip Efficiency: 92% rated
•Annual Degradation: ~2.5% per year expected
•Installation: Must be installed by SAA-accredited installer
•Operating Conditions: -10°C to 50°C

✓ TransferableFull replacement

Warranty Document Datasheet Compare Warranties

WA Battery Scheme eligibility

Likely eligible

Synergy SSL inverter pairing, VPP participation and state-rebate qualification for this battery. Rebate and STC amounts are shown in the pricing panel.

CSIP-AUS compliant
On the Synergy Supported Solutions List (SSL) for remote management.
Synergy SSL approved inverter
Pairs with ALPHA ESS CO LTD SMILE.
VPP activation ready
Ready for Synergy VPP participation.
WA Battery Scheme rebate
Up to $1,300 for Synergy customers (10kWh max eligible).
Synergy Battery Rewards
Earns credits during VPP activation events (up to 30/year).
Interest-free loan
Qualifies for up to $10,000 interest-free.

Under current WA rules, new rebate applications require VPP enrolment and CSIP-AUS compliance. How the scheme works · Estimate VPP earnings

About Alpha ESS

View Full Profile →

Years in AU Market9+ years

Local SupportNot verified

CEC-Listed Products62 models

9yr AU

CEC-approved products since 2017

9 years in the Australian market

Fault & error codes — Alpha ESS SMILE-M-BAT

Extracted from the installation manual

11 documented

Showing 11 of 11. The official install manual is the authoritative source — always confirm before acting.

Error01criticalCall your installer
Manual (PDF)
Hardware error
Likely cause
Internal system failure or malfunction
What to do
Wait for automated recovery. In case problem is not resolved, call in for repair.
Error03criticalCall your installer
Manual (PDF)
Hardware error
Likely cause
Internal system failure or malfunction
What to do
Call in for repair.
Error05criticalCall your installer
Manual (PDF)
Hardware error
Likely cause
Internal system failure or malfunction
What to do
Call in for repair.
Error09criticalCall your installer
Manual (PDF)
SN missing
Likely cause
Serial number not entered or recognized
What to do
Enter the serial number, restart the system or call in for repair.
Error11criticalCall your installer
Manual (PDF)
Software version inconsistent
Likely cause
Mismatch of software versions
What to do
Call installation for repair.
Error13critical
Manual (PDF)
MOS over temperature
Likely cause
Temperature exceeds operational limits
What to do
Power off the battery and turn on the battery after 30-40 minutes.
Error06warning
Manual (PDF)
Circuit Breaker Open
Likely cause
The circuit breaker has tripped or has been opened
What to do
Close circuit breaker after shutting down the battery system.
Error07warning
Manual (PDF)
DIP difference
Likely cause
Inconsistent settings on DIP switches
What to do
Keep consistency of DIP switches, restart the system.
Error08warning
Manual (PDF)
LMU Disconnect(slave)
Likely cause
Communication cable issue
What to do
Reconnect the communication cable.
Error10warning
Manual (PDF)
LMU Disconnect(master)
Likely cause
Communication cable issue
What to do
Reconnect the communication cable.
Error12warning
Manual (PDF)
Multi master
Likely cause
Multiple devices are attempting to be masters
What to do
Restart all batteries.

Perth pricing

Typical installed price

$8,500

WA State Rebate-$650

Federal STCs-$1,357

After Rebates~$6,493

Prices are estimates. Final pricing depends on installation requirements. STC value is based on the current certificate price of about $39.9.

Explore your options

Insufficient Data for Scoring

3 of 5 critical specs available (need 4)

Part of the Alpha ESS SMILE-M-BAT

See all configurations in this series →

Compare options

Compare this battery with other models to find the best fit for your needs.

Compare Products

Frequently asked questions

How it compares

The Alpha ESS SMILE-M-BAT-5P against the closest-sized batteries from other brands.

Specification	Alpha ESS SMILE-M-BAT-5PAlpha ESS	Anker X1-B5-HAnker	Anker X1-P6K-B05-S (AS4777-2 2020)Anker

Usable capacity?	5 kWh	5 kWh	5 kWh
Continuous power?	Not verified	Not verified	Not verified
Peak power?	Not verified	Not verified	Not verified

Round-trip efficiency?	92%	92%	92%
Warranty	5 years	10 yearsbest value	10 yearsbest value
Chemistry	LFP	LFP	LFP

Specs from the CEC register and datasheet enrichment. Indicative — confirm exact figures with your installer.
