Home battery · FoxESS · EQ4800 series · CEC approved November 2024

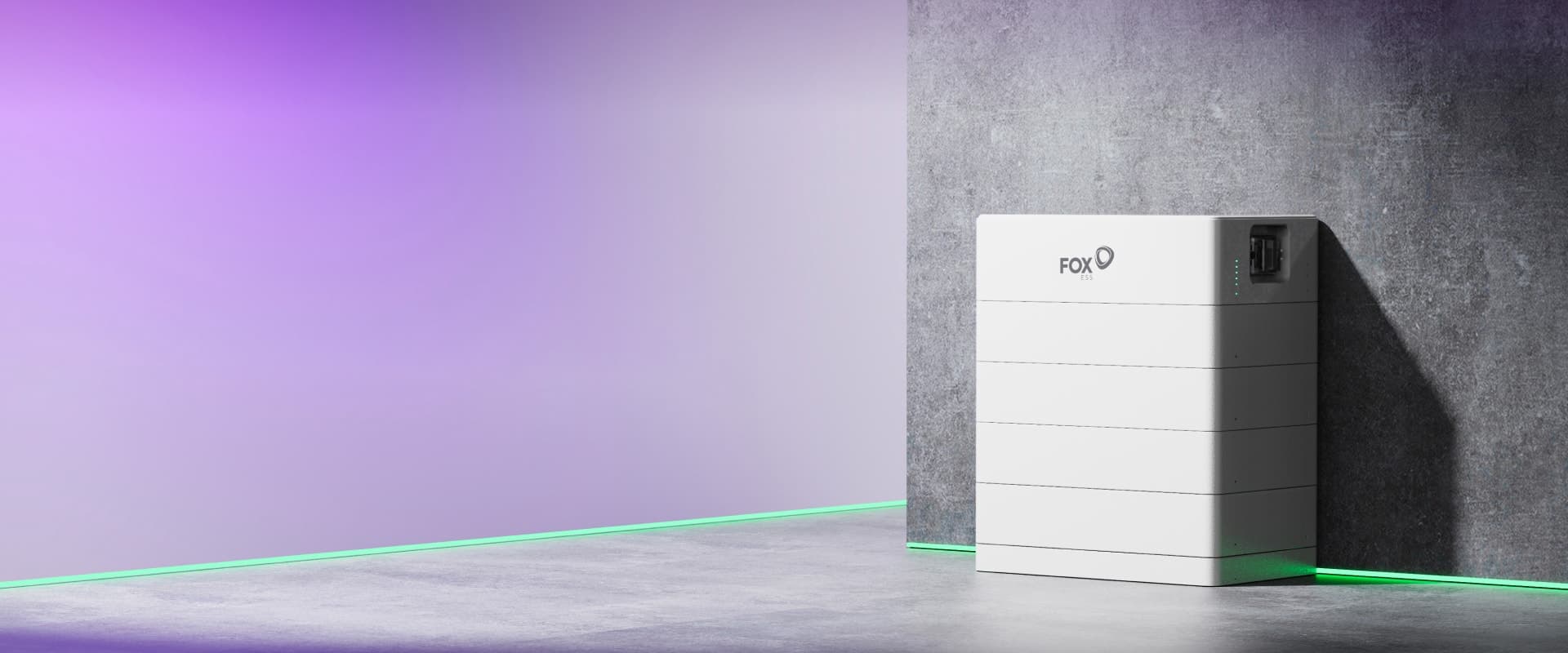

FoxESS EQ4800-L2

A 9.32 kWh home battery.

Installed in Perth, after rebates: ~$5,874Estimate: your own quote will vary
WA Battery Scheme rebate: Depends on your inverterThe scheme needs a Synergy-approved inverter; we don't know yours
Usable capacity: 9.32kWhBelow the smaller-home band
Warranty: 5yrs

EQ4800-L2: the short answer

In the EQ4800 seriesOne of 8 sizes, from 9.32 to 41.93 kWh: 9.32kWhOne of 8 sizes, from 9.32 to 41.93 kWh
WA Battery SchemeThe scheme needs a Synergy-approved inverter; we don't know yours: Check eligibilityThe scheme needs a Synergy-approved inverter; we don't know yours
Continuous powerRuns the essentials, not the whole house: 4.48kWRuns the essentials, not the whole house

Other sizes in the EQ4800 series

What we can tell you

Read from the figures on this page. No review written yet.

9.32 kWh is below the smaller-home band: this is one module of a larger stack.
It is CEC-approved, which is a condition of both the federal STC discount and the WA Battery Scheme.
We can't score it: a value score needs a price and full specs, and without them any number would be guesswork.

Key specs, in plain terms

The numbers that matter for a home. The full datasheet is below.

Usable capacity: 9.32kWh; How much energy it stores for you to use
Continuous power: 4.48kW; How much it can run at once: the essentials, not the whole house
Round-trip efficiency: 95%; How much of the energy you store comes back out
Depth of discharge: 100%; You can use the whole battery, not just part of it
Warranty: 5yr; 70% of capacity guaranteed at the end of it
Battery chemistry: LFP; Lithium iron phosphate, the long-cycle-life type

Warranty and support

This warranty covers Fox battery products for up to 60 months with a minimum 70% capacity at 10 years. Claim by contacting Fox ESS with required details.

Product: 5 years; transferable; full replacement
At year 10: At least 70% of capacity
Throughput: 12.15 MWh
Installation: Must be installed by an SAA-accredited installer
Support: Australian officeFoxESS Australia; 7 years in the Australian market. Direct manufacturer warranty. Australian consumer law applies.
Perth heat: Rated to 55°C, which covers Perth's hottest days.

Warranty document Datasheet Compare warranties

WA Battery Scheme eligibility

Check eligibility

Synergy SSL inverter pairing, VPP participation and state-rebate qualification for this battery. Rebate and STC amounts are shown in the pricing panel.

CSIP-AUS compliant: Inverter must be CSIP-AUS compliant under the current WA framework.
Synergy SSL approved inverter: Needs pairing with a Synergy SSL approved inverter.
VPP activation ready: VPP activation requires a Synergy SSL approved inverter.
WA Battery Scheme rebate: Requires Battery Rewards participation under the current WA framework.
Synergy Battery Rewards: Requires a CSIP-AUS compliant system and reliable internet.
Interest-free loan: Not eligible for interest-free financing.

Under current WA rules, new rebate applications require VPP enrolment and CSIP-AUS compliance. How the scheme works · Estimate VPP earnings

Full datasheet

Every figure on file for the FoxESS EQ4800, by section.

Cell & chemistry

Chemistry: LFP
Cell type: N/A

Capacity & power

Nominal capacity: 9.32 kWh
Usable capacity: 9.32 kWh
Continuous power: 4.48 kW
Peak power: 6.5 kW
Depth of discharge: 100%
Round-trip efficiency: 95%
Nominal voltage: 89.6 V

Lifespan & degradation

Capacity retained at year 10: 70%
Warranted throughput: 12.15 MWh

Modularity & stacking

Modular / stackable: Yes
Maximum stack: 41.93 kWh

Backup & grid services

Backup capable: No
VPP ready: No

Physical

Dimensions (H×W×D): 570 × 386 × 380 mm
Weight: 83.5 kg
IP rating: IP65

Operating environment

Operating temperature: 0°C to 55°C

Installation requirements

Top clearance: 20 mm
Side clearance: 50 mm
Front clearance: 50 mm
DNSP pre-approval: No

Parsed from the manufacturer datasheet, install manual, and warranty document. Confirm against the linked PDFs before relying on a value for a quote or installation.

Documents

About FoxESS

Years in the Australian market: 7+ (CEC-approved products since 2019)
Local support: Not verified
CEC-listed products: 116 models

View full profile →

What it costs in Perth

$8,388

Typical installed price, before rebates

WA Battery Scheme: Depends on your inverter
Federal STCs: −$2,514
You’d pay about: $5,874

The WA Battery Scheme (up to $1,300) needs a Synergy-approved inverter and VPP enrolment. We don't know which inverter you'd pair this with, so it isn't deducted above. Ask your installer. STCs assume about $39.9 a certificate. Estimates only; your quote will vary.

Explore your options

Which size band is your home?

Usable capacity, for one battery system

Smaller home: 10 to 15 kWh
Medium home: 20 to 30 kWh
Big home: 30 to 40 kWh
Very big home: 40+ kWh

This battery is below the smaller-home band. The WA rebate caps at 10 kWh, but that is a rebate limit, not a sizing guide.

Does waiting change the rebate?

Estimated federal rebate (STCs) for this 9.32 kWh battery

Frequently asked questions

How it compares

The FoxESS EQ4800-L2 against the closest-sized batteries from other brands.

Specification	FoxESS EQ4800-L2FoxESS	FoxESS 1K5-BAT-4660-L2FoxESS	Alpha ESS SMILE-BAT-10.3PAlpha ESS

Usable capacity?	9.32 kWhbest value	9.32 kWhbest value	9.3 kWh
Continuous power?	4.48 kW	Not verified	Not verified
Peak power?	6.5 kW	Not verified	Not verified

Round-trip efficiency?	95%best value	92%	92%
Warranty	5 years	Not verified	Not verified
Chemistry	LFP	LFP	LFP

Specs from the CEC register and datasheet enrichment. Indicative: confirm exact figures with your installer.
