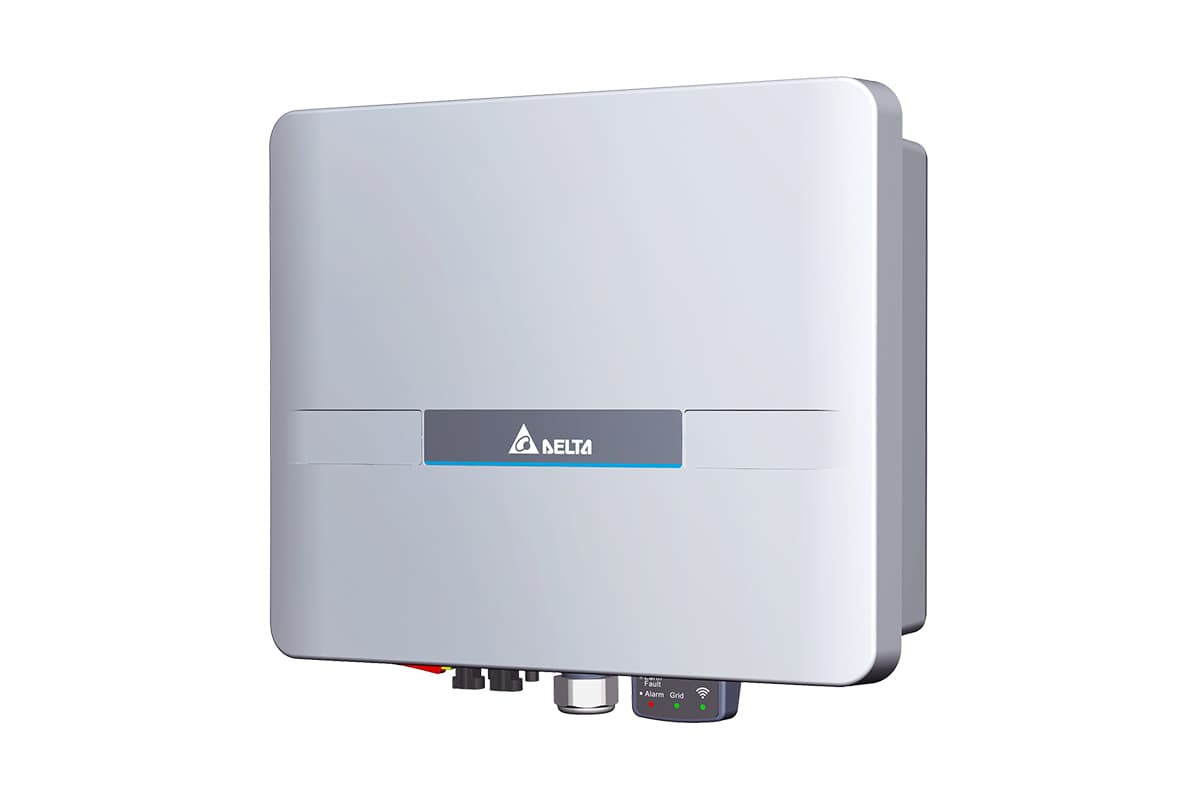

Solar inverter · Delta · H5A_222 series · CEC approved December 2024
CEC listing: H5A_222 (AS4777-2 2020)
A 5 kW single-phase solar inverter.
Read from the figures on this page — no review written yet
The numbers that matter for a home. The full datasheet is below.
Rated power
How much solar it can turn into usable power at once
Max efficiency
How much of the solar you make reaches the house
Phases
Runs on a standard single-phase supply
MPPT trackers
2 roof faces can be tuned independently
Type
Runs solar only
Warranty
How long Delta Electronics Inc stands behind it
Every figure on file for the Delta H5A_222, by section.
| Specification | Value |
|---|---|
| Power & output | |
| Nominal power | 5 kW |
| Maximum power | 5.5 kW |
| Apparent power | 5 kVA |
| Phases | 1 |
| Efficiency | |
| Max efficiency | 97.4% |
| European efficiency | 95% |
| CEC-weighted efficiency | 96% |
| DC input & MPPT | |
| MPPT trackers | 2 |
| Max input voltage | 600 V |
| MPPT voltage min | 30 V |
| MPPT voltage max | 550 V |
| Max input current | 22 A |
| Battery & backup | |
| Battery compatible | No |
| Backup capable | No |
| Continuous backup | 5 kW |
| Physical | |
| Dimensions (H×W×D) | 318 × 380 × 130 mm |
| Weight | 10 kg |
| IP rating | IP65 |
| Cooling | Natural cooling |
| Operating temperature | -25°C to 60°C |
| Installation requirements | |
| Cable gauge | 4 mm² |
Parsed from the manufacturer datasheet, install manual, and warranty document. Confirm against the linked PDFs before relying on a value for a quote or installation.
Battery compatible
No
Backup capable
No
CEC approved
20 Dec 2024
Approval expiry
10 June 2027
Status
Active
Eligible for rebates
Yes
Years in AU Market
13 years
Australian Office
Yes
CEC-Approved Batteries
3
CEC-Approved Panels
0
Category
Budget
Typical installed, inverter only
$1,000–$2,000
Prices vary by installer, configuration and site complexity. Get exact quotes from installers you choose.
Compare quotes from installers you choose
Western Power approval is required for every grid-connected install. Under Emergency Solar Management, a new system must be remotely manageable, or take an export limit instead — ask your installer to confirm this inverter’s ESM status.
Estimate for a full-size array on this inverter
At 5 peak sun hours a day (BOM) with a 15% system derate.
Australian office
Has local presence
Website
www.deltaww.com/en-auThe Delta H5A_222 against the closest-power inverters from other brands.
| Specification | Delta H5A_222Delta | Energizer FORCE 5.0HSEnergizer | Energizer Force 5.0HT+Energizer |
|---|---|---|---|
| Rated power? | 5 kW | 5 kW | 5 kW |
| Max efficiency? | 97.4%best value | 0.0% | 0.0% |
| MPPT trackers? | 2 | Not verified | Not verified |
| Phases | Single-phase | Single-phase | Three-phase |
| Type | Solar | Hybrid | Hybrid |
| Battery ready | No | Yes | Yes |
| Warranty | 5 years | Not verified | Not verified |
Specs from the CEC register and datasheet enrichment. Indicative — confirm exact figures with your installer.
This warranty covers replacement for major failures for 60 months on certain PV String Inverters and 12 months for the Eltek Flatpack2 Solar charger. It excludes damage from improper installation and environmental factors. To claim, notify Delta within 60 days with documentation including proof of purchase.
AI-summarised from the manufacturer warranty document. Always confirm against the linked PDF before relying on it for a claim.
Part of the Delta H5A_222 series
Compare every Delta H5A_222 variant side by side →
AIOA279K125L (AS4777-2 2020)
125 kW · 3φ
AIOC279K125L (AS4777-2 2020)
125 kW · 3φ
BX6.3_AC100 (AS4777-2 2020)
3 kW · 1φ
BX6.3_AC101 (AS4777-2 2020)
3 kW · 1φ
H10E (AS4777-2 2020)
9.2 kW · 1φ
H5E_220 (AS4777-2 2020)
5 kW · 1φ
Other CEC-approved products from Delta Electronics Inc available in Australia.
Get a quote from an installer from our network that covers your area. You choose whether to act on it. No obligation.
About this data
All inverter specifications are sourced from the CEC Approved Products Register. Specifications are provided as published by the CEC and may differ from manufacturer datasheets. Verify current specifications with the manufacturer or your installer before purchasing. Not all listed models may be currently available in Western Australia.
